Hyrdaulic Systems Simulation Tool

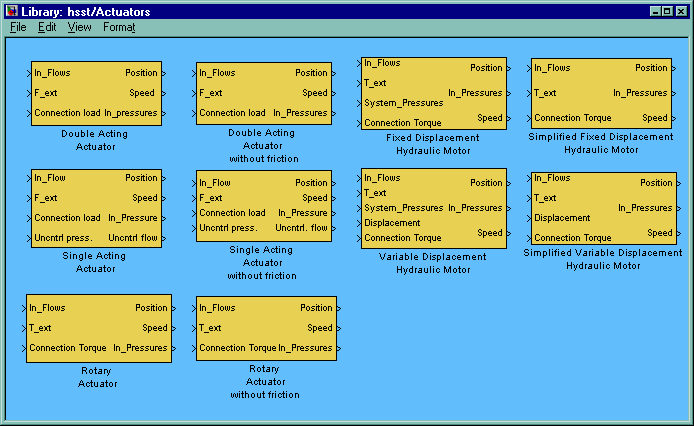

In the actuators library there ten blocks representing double acting actuators, single acting actuators, rotary actuators and hydraulic motors.


For each actuator type, there are also a block that does not take into account the effect of the friction. If the friction is negligible, it is useful to use this kind of blocks because they increase the simulation speed.
