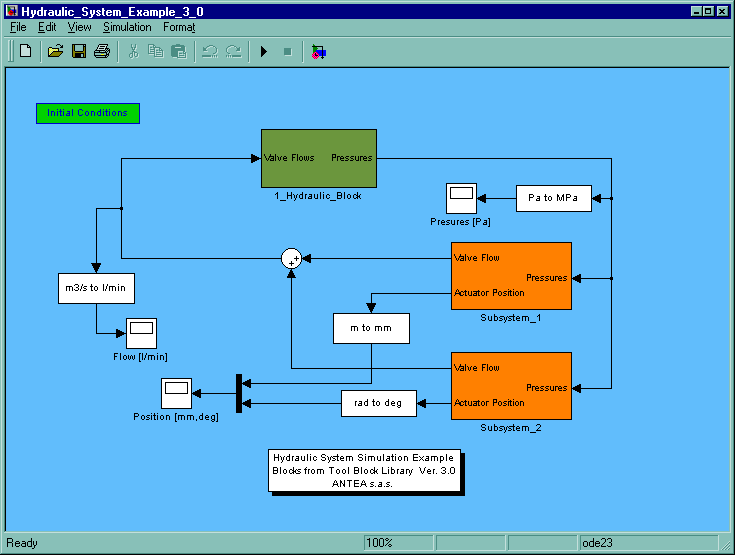

The Sample Model which is shown here is an hydraulic power pack which supplies two independents Systems.

This model is composed by three main Subsystems.

The Hydraulic Block which consist of a Variable Displacement Pump supplying a Pressurized Reservoir.

The Subsystem 1 which consist of a Linear Actuator hydraulically controlled by a PID controlled Servovalve.

The Subsystem 2 which consist of a Linear Actuator hydraulically controlled by a PID controlled Servovalve

Supply and Return lines are joined together in a pressure line vector to make easier the block connection.

The user of HSST do not need to be a Mathlab or Simulink expert, neither need to have the mathematical and engineering background to model components.

All the initialization process is easily controlled by means of the initialization block which has a friendly use mask to manage all the initialization task. You can set your simulation starting from zero condition or you can chose to start from an initial state which was saved from previous simulation run.
