Pumps

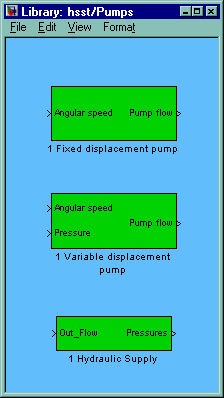

There are two types of pumps: fixed displacement and variable displacement. In both the cases, into the dialog box, in addition to the pump parameters, the hydraulic fluid data are defined. These data will be used by all the other blocks.

In addition to these two kinds of pump blocks, there is the block ‘Hydraulic Supply’ that represents a constant pressure source. This block can be useful when the behaviour of the power generation system can be not considered. When this block is used, the accumulator, the reservoir and the pressure relief blocks shall not be introduced.
